Giới thiệu
Flex bo mạch in cứng nhắc là những bảng sử dụng một sự kết hợp của công nghệ ban linh hoạt và cứng nhắc trong một ứng dụng. Hầu hết các bo mạch flex cứng nhắc bao gồm nhiều lớp chất nền mạch linh hoạt gắn liền với một hoặc cứng nhắc hơn bảng bên ngoài và / hoặc nội bộ, tùy thuộc vào thiết kế của ứng dụng. Các chất nền linh hoạt được thiết kế để được trong một nhà nước liên tục flex và thường được hình thành vào những đường cong uốn cong trong sản xuất, lắp đặt.
Thiết kế flex cứng có nhiều thách thức hơn so với thiết kế của một môi trường ban cứng điển hình, các bo mạch này được thiết kế trong một không gian 3D, mà còn cung cấp hiệu quả không gian lớn hơn. Bởi có thể để thiết kế ba chiều thiết kế flex cứng nhắc có thể xoay, gập và cuộn các chất nền ban linh hoạt để đạt được hình dạng mong muốn của họ cho gói ứng dụng cuối cùng của.
Các loại vật liệu
FR-4, CEM-1, CEM-3, IMS, cao TG, tần số cao, Halogen miễn phí, cơ sở nhôm, cơ sở cốt lõi kim loại
xử lý bề mặt
HASL (LF), Flash vàng, ENIG, OSP (Chì tương thích miễn phí), mực Carbon,
Peelable S / M, Immersion Ag / Tin, vàng ngón tay mạ, ngón tay ENIG + Vàng
Quy trình sản xuất
Cho dù sản xuất một mẫu thử nghiệm hoặc sản xuất flex cứng nhắc số lượng đòi hỏi quy mô lớn cứng nhắc flex PCB chế tạo và lắp ráp PCB, công nghệ này được chứng minh tốt và đáng tin cậy. Phần PCB flex là đặc biệt tốt trong việc khắc phục không gian và trọng lượng các vấn đề với độ không gian tự do.
Xem xét cẩn thận các giải pháp linh động cứng nhắc và đánh giá thích hợp của các tùy chọn có sẵn ở giai đoạn sớm trong giai đoạn thiết kế PCB flex cứng nhắc sẽ trở lại lợi ích đáng kể. Điều quan trọng là sự cứng nhắc flex PCB fabricator tham gia sớm trong quá trình thiết kế để đảm bảo thiết kế và phần fab đều phối hợp và để giải thích cho các biến thể sản phẩm cuối cùng.
Các giai đoạn sản xuất flex cứng nhắc cũng là phức tạp và mất nhiều hơn so với chế tạo tàu cứng nhắc thời gian hơn. Tất cả các thành phần linh hoạt của các hội đồng flex cứng nhắc có các quy trình xử lý, khắc và hàn hoàn toàn khác so với bảng FR4 cứng nhắc.
Ứng dụng
LED, viễn thông, ứng dụng máy tính, ánh sáng, máy chơi game, điều khiển công nghiệp, năng lượng, ô tô và cao cấp thiết bị điện tử tiêu dùng, ect.a
|
Thông tin chi tiết sản phẩm:
|
Điểm nổi bật: | Lead Free PCB,High Frequency PCB |
---|

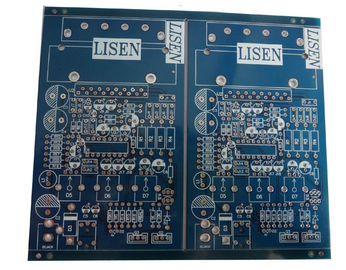

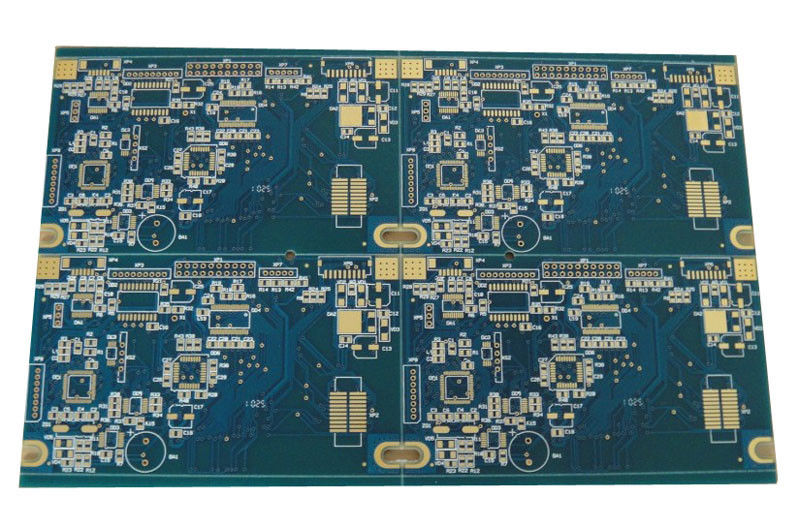

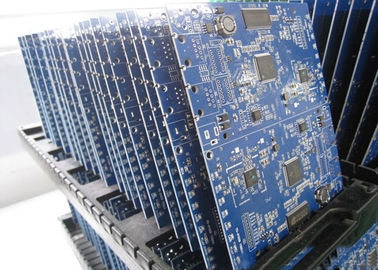

1oz LED Display Rigid PCB Board FR4 4 Layer Blue Soldermask
PCB Name: | LED Display PCB Board | Layer count | 4 Layer |
Base Material: | FR4 | Board Thickness: | 1.6mm |
Copper Thickness: | 1oz | Min. Hole Size: | 0.4mm |
Min. Line Width/Spacing: | 0.15mm/0.15mm | Surface treatment: | Immersion Gold |
Solder mask color: | Blue | Silkscreen color: | White |
Original: | PCB Shenzhen House | Service: | PCB & PCBA |
Description:
China printing circuit board house specializes in PCB prototype and low volume PCB production manufacturing. Our printing circuit board manufacturing lines are located in China, which enable us to provide high quality, tight tolerance printed circuit boards at competitive prices.
From our printing circuit board, you are able to get instant contact with us to get online PCB quote only to tell us you requirement and send us PCB Gerber. Our team is waiting for you.
Applications:
Control Systems, LED Display, Digital Theater Systems, Vacuum Tube Electronics Displays, Linear Motors and Motion Products, Computer Diagnostic Tools, Lottery Pull-Tab and Scratch-off Ticket Machines, Point-of- Sale (POS) Electronic Security Systems, Automated ITVMs (Ticket Machines), Self-Service ATMs and Kiosks, Security Door Controls, Door Card Control, Electronic Lock, Aircraft Parts/Equipment, Switching Systems, Terminal Equipment, Publicly Accessible Equipment Vending Machines, Precision Positioning Systems, Robotics System, Water Purification System, Antenna, Guitar Electronics, Position Indicators, Controllers, Memory and Non-Memory Products, Networking, Wireless Communications ect.
Specification:
Layer count |
Single sided, 2L, 4L,6L,8L,10L-26 Layers |
Base material |
FR4, High Tg FR4, CEM-3, Aluminum Base, Copper core, High frequency, Polyimide (PI), Polyester(PET) ,Rogers RO4350,Polyimide,Teflon,Getek Copper Clad Thermal Substrates |
Board thickness |
0.2mm, 0.4mm, 0.8mm, 1.0mm. 1.2mm.1.6mm.2.0mm-2.4mm, 3.2mm,4.0mm |
Maximum Board Size |
580mmx700mm |
Copper thickness |
0.5oz, 1oz, 2oz ,3oz., 4oz,5oz,6oz |
Minimum Hole Size |
0.2mm |
Minimum Trace/Space |
4mil/4mil |
Surface finish |
HASL(Hot Air Solder Level), Pb Free HASL , Electroless Nickel and Immersion Gold (ENIG), Plating Gold, Gold Fingers (Gold Connector), Silver Immersion, Organic Surface Protectant (OSP), Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG),Hard Gold |
Solder Mask |
Green, Red, Blue, Black, Matte Green, Orange |
Silk Screen |
White, Yellow, Black |
PCB Fabrication |
Scoring, Route, V-Score, Counter Sink, Bevel, Cutouts and Slots |
Quality Control |
IPC 6012 Class 2, Electrical Testing, Flying probe Testing, 100% Netlist Testing |
Special Technology |
Impendence Control, Differencial PCB printed circuit board, Peelabemask PCB , High Density PCB HDI, Carbon Ink Printing,Heavy copper PCB ,Metal Core circuit boards ,Copper Clad PCB printed wiring board, Blind & Buried Vias, Laser Drilled Vias, Burn-in Boards,Backplanes, Bonded heat sinks, Controlled depth drilling, Controlled Impedance, Filled/plugged vias, Heavy copper, HDI, Large format PCB, Landless vias, Printed Electronics, RF
|
Advantage:
1. We offer low-cost PCB prototypes. No minimum order limit.
2. Fast quotation, 24 hour prompt response.
3. Our PCB factory is ISO/TS approved and with high & advanced production capabilities.
4. We are full service provider. Our services include PCB manufacturing, PCB assembly, components sourcing, stencil, also PCB layout, from specification to final production turnkey service. It is your good choice for one stop PCB solutions.
5. We provide technical and professional support, satisfactory customer service.
Contact us with your detail PCB requirement Now!
