Giới thiệu:
PCBs Flex, còn được gọi là mạch in linh động hoặc thiết bị điện tử linh hoạt, cung cấp tùy chọn hơn cho các nhà thiết kế và kỹ sư khi lắp ráp các mạch điện tử.
Chúng được xây dựng từ chất liệu nhựa dẻo, hiệu suất cao, thường là polyimide, cho phép các hội đồng để uốn cong hoặc "flex" trong khi sử dụng. Sự linh hoạt này sẽ mở ra cho họ để sử dụng trong một loạt các ứng dụng.
Thông tin chi tiết sản phẩm:
|
| Làm nổi bật: | flex board pcb,FPC,Flexible board |
||
|---|---|---|---|

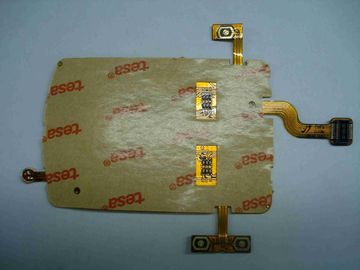

OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates
Electrical Test 0.1-0.25mm Thickness OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper
Quick Detail:
HAL/ENIG Surface finishing
Custom Layer :1 Layer ,2 Layer ,4 Layer, 6 Layer
0.1-0.25mm Thickness
FR4 Material
0.5-3oz Copper
Description:
|
Layer |
1-6 |
|
Material |
Polyimide |
|
Thickness |
0.1-0.25mm |
|
Surface finishing |
HAL/ENIG |
|
Copper |
0.5-2oz |
|
Test |
Electrical Test |
Applications:
Flexible board can be used for all kinds of electrical products, such as computer, mobile, led and so on. It’s widely used in various of industries in the world. We have been FPC and assembly business for ten years and provide different customized FPC to many countries all over the world. Welcome to contact us for further news.
Competitive Advantage:
1, Excellent quality control service
2, Competitive price
3, Quick production time
4, PCB design/production/test integrated service
Specifications:
|
Product Technical Parameter |
|||
|
Basic technology |
Parameter |
||
|
Single/Double sided |
Multilayer |
||
|
Number of Layers |
1-2 |
4~6 |
|
|
Copper Thickness |
0.25~3.0OZ |
0.5~3.0OZ |
|
|
Base Board Thickness |
0.1~0.3mm |
0.1~0.3mm |
|
|
Incombustibility |
94V-0 |
94V-0 |
|
|
Peelable resistance |
12.3N/cm |
12.3N/cm |
|
|
Twist |
≤0.5% |
≤0.5% |
|
|
Insulation resistance |
≥1011Ω |
≥1011Ω |
|
|
Test voltage |
10-300V |
10-300V |
|
|
Finished board area |
560×970mm |
560×970mm |
|
|
Min. Line Width and Spacing |
0.1/0.1mm |
0.1/0.1mm |
|
|
Copper thickness in hole |
≥25.0um |
≥25.0um |
|
|
Mini. pad diameter |
Inner layer |
|
0.05mm |
|
Out layer |
0.076mm |
0.076mm |
|
|
Mini. Hole Diameter |
0.25mm |
0.20mm |
|
|
Hole tolerance |
PTH |
±0.076mm |
±0.076mm |
|
NPTH |
±0.05mm |
±0.05mm |
|
|
Hole location tolerance |
±0.076mm |
±0.05mm |
|
|
profile tolerance |
Routing |
±0.1mm |
±0.1mm |
|
Punching |
±0.13mm |
±0.13mm |
|
|
Solder mask bridge ability |
≥0.1mm |
≥0.075mm |
|
|
Solder mask rigidity |
6H |
6H |
|
|
Solderable test |
245℃ 5 second |
245℃ 5 second |
|
|
Thermal cycling ability |
288℃ 10 second |
288℃ 10 second |
|
|
Surface Finishing |
OSP, HAL, HAL Lead-free, Immersion gold , Gold plating, Rosin, Gold finger, Immersion Tin and so on |
||
|
Qaulity standard |
IPC-A-600F IPC-ML-950 |
||
|
Sample standard |
STD-105E-Ⅱ |
||
